Security and fire protection combined – available in one, two or four hour ratings.

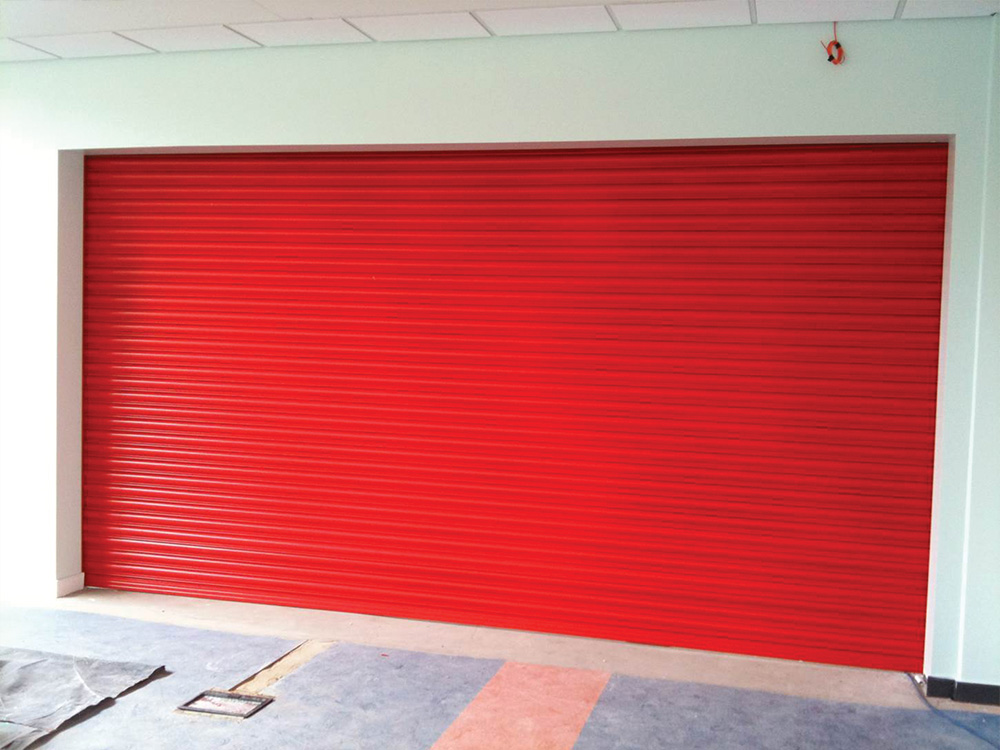

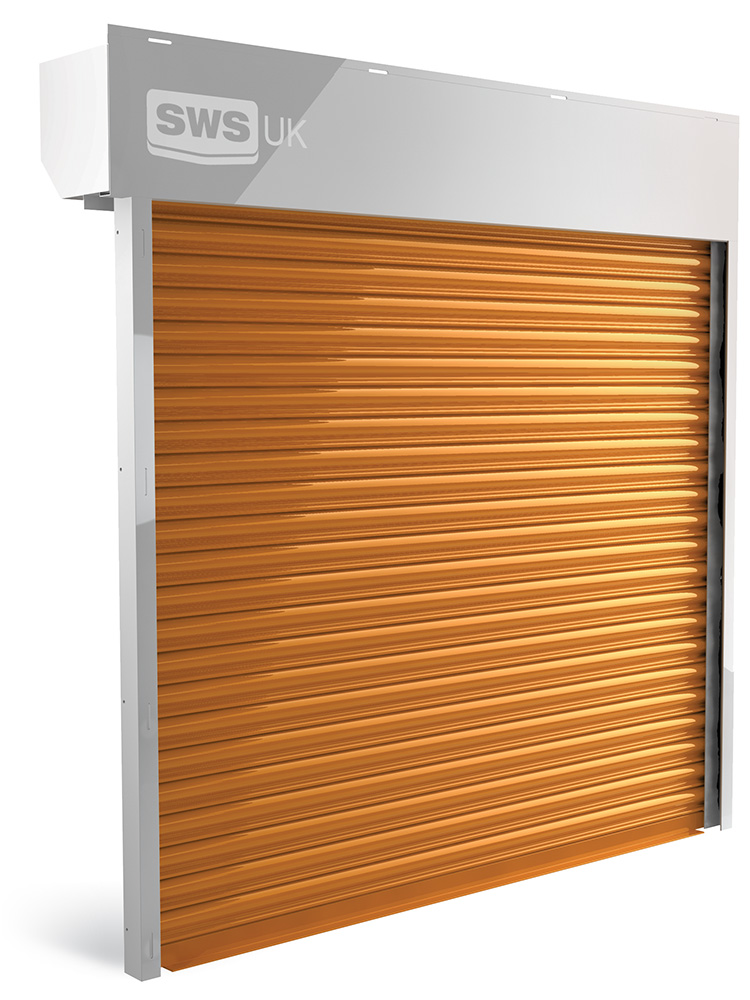

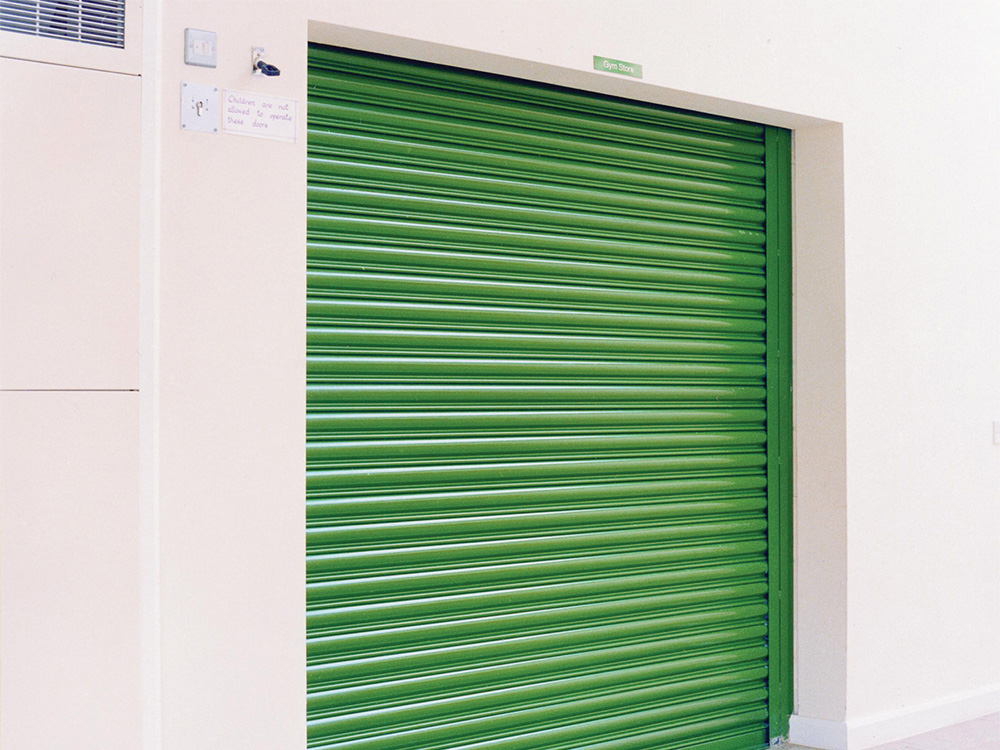

Flame Shutter is an electrically operated vertical fire shutter, consisting of a steel slatted curtain and galvanised steel box assembly and guide rails. The box, curtain, guide rails and bottom rail can be powder coated as an optional extra.

Designed to be a security barrier during normal use and to be closed automatically during a test or an emergency situation. In the event of receiving a fire alarm signal the barrier will perform a powered descent to create a fire resistant barrier.

In the event of power failure Flame Shutter will close using the battery backup feature. Flame Shutters design allows for both face or reveal installations.

Call us today on: 01892 725101

This product is uniquely capable of providing specifiers with a choice of Flame Shutter 60, 120, or 240 minutes integrity performance in accordance with the standards mentioned above.

Available in three integrity ratings.

• Flame Shutter 60 (1 hour rated)
• Flame Shutter 120 (2 hour rated)
• Flame Shutter 240 (4 hour rated)

Size Limitations

Min/max width: 800 mm / 7000 mm
Min/max height: 800 mm / 4600 mm

Sizes can vary according to integrity rating and larger sizes require a hood support bracket. Please check for confirmation. Maximum sizes can vary according to integrity rating.
